Complete GLT Manufacturing Facility for A. Baumgartner GmbH in Austria
Company A. Baumgartner GmbH in Austria has invested in new Turnkey industrial production for glue laminated timber. The line is in the commissioning stage and will shortly start to supply the domestic market with glulam beams. Ledinek got the opportunity to supply a complete GLT line.
All machines are integrated under special developed Glulam manager PC based control system.
Company: A. Baumgartner GmbH
Location: Sollenau / Austria
Species: spruce, larch, pine
Production capacity: 57.600 m³/y - solid finger jointed timber and 19.200 m³/y glulam beams

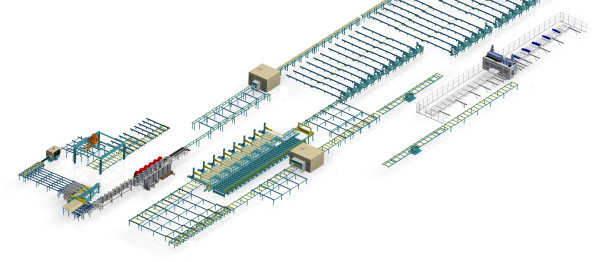

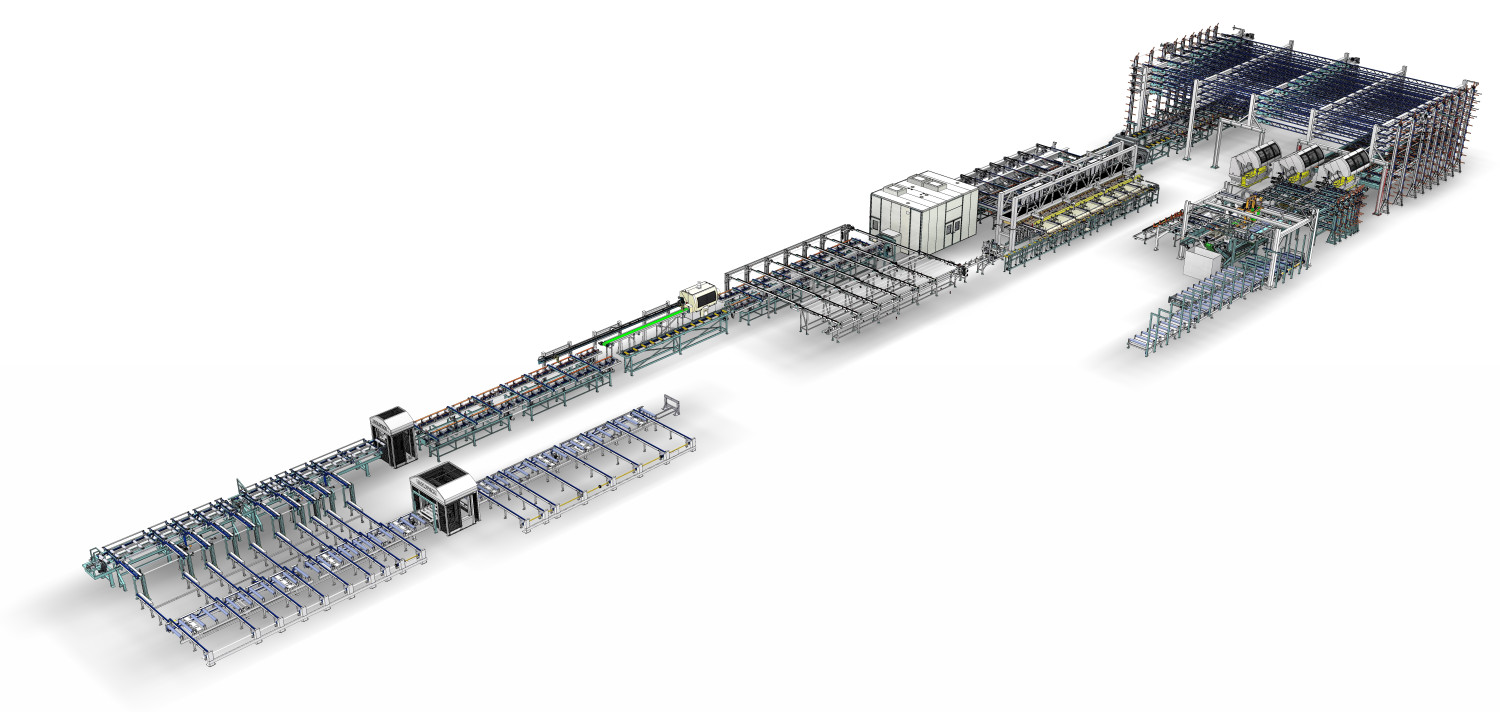

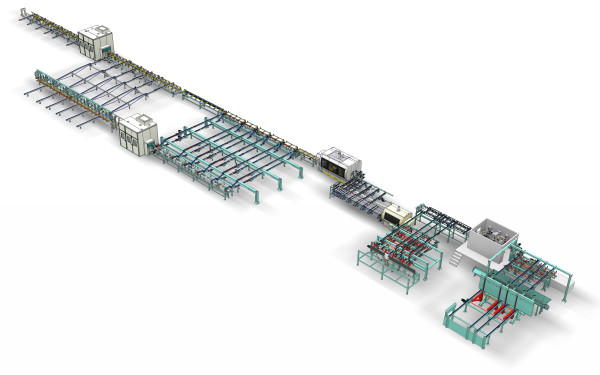

Turnkey GLT production

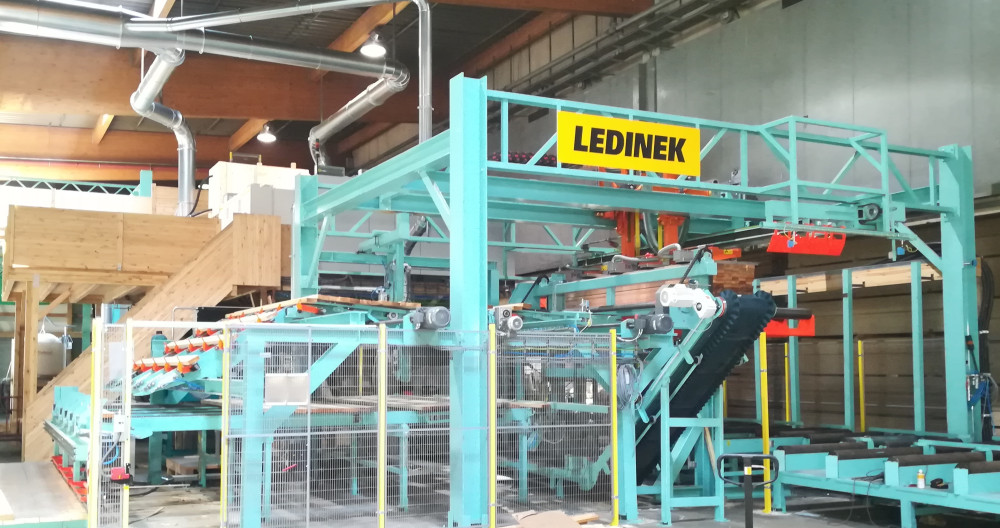

1. Vacuum de-stacking and device for stacking strips removal with sensor recognition

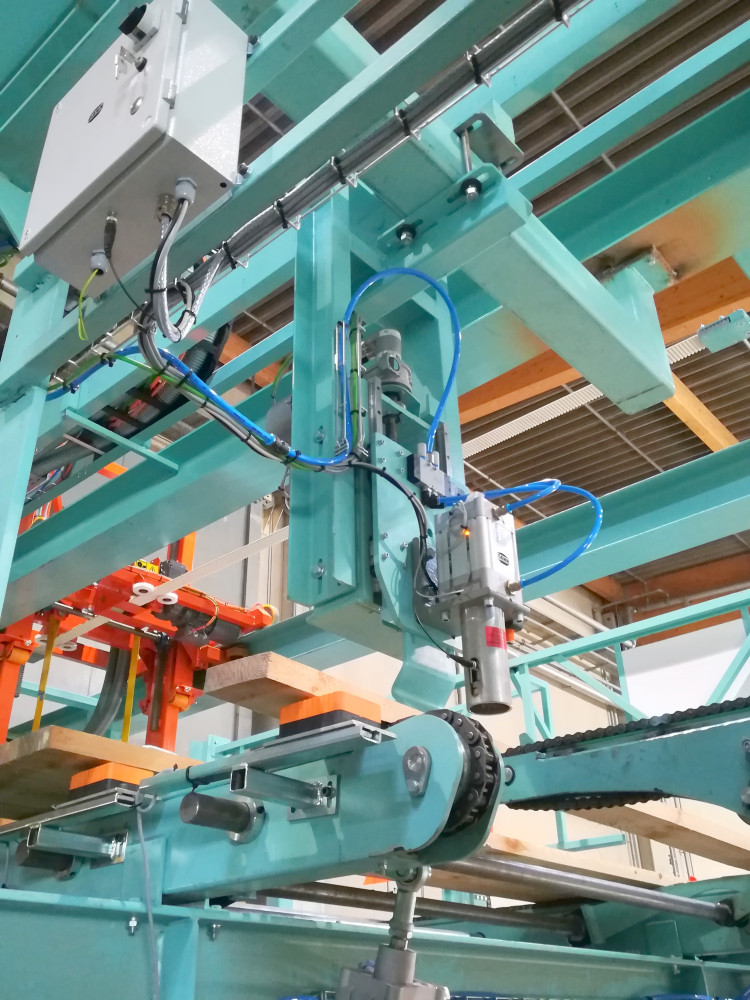

2. Moisture meter, reject gate

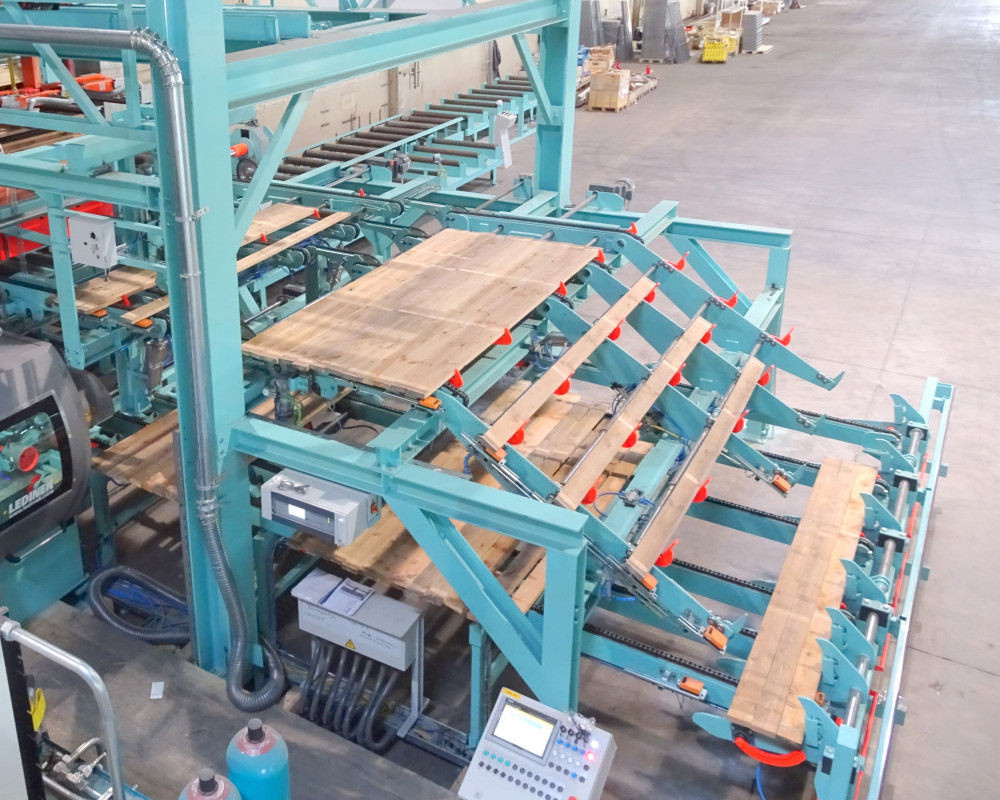

3. Marking station with integrated turning device

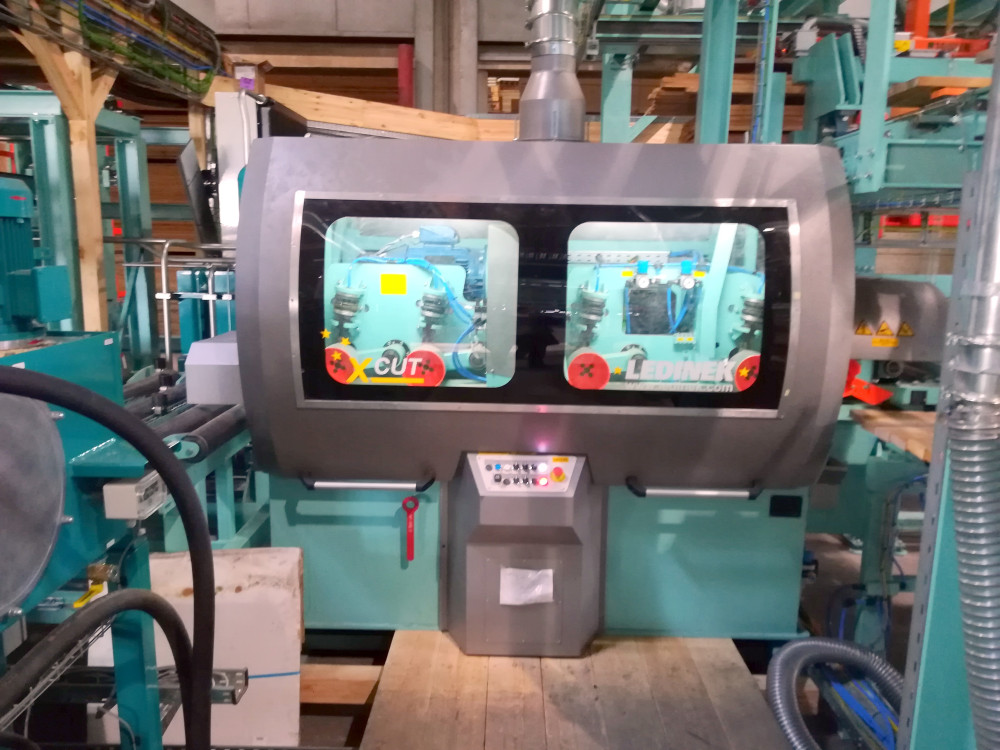

4. X-CUT S350 cross cut saw to remove timber defects

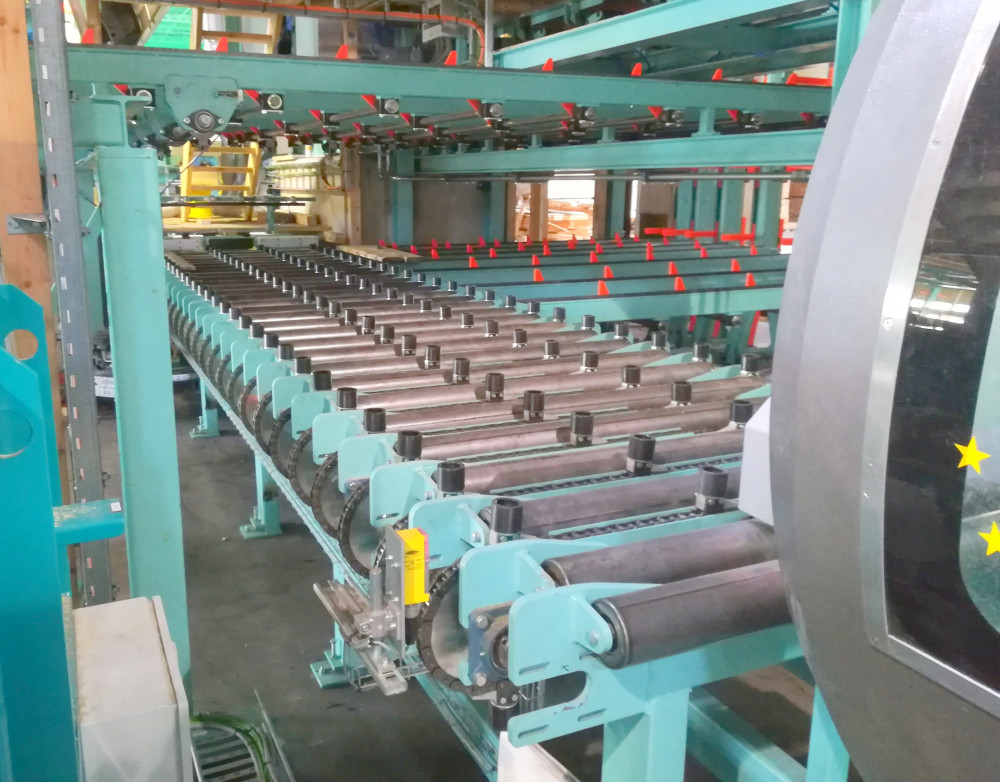

5. Pull off with lug chains and alignment roll conveyor to the left/right
6. Infeed system to finger jointing machines

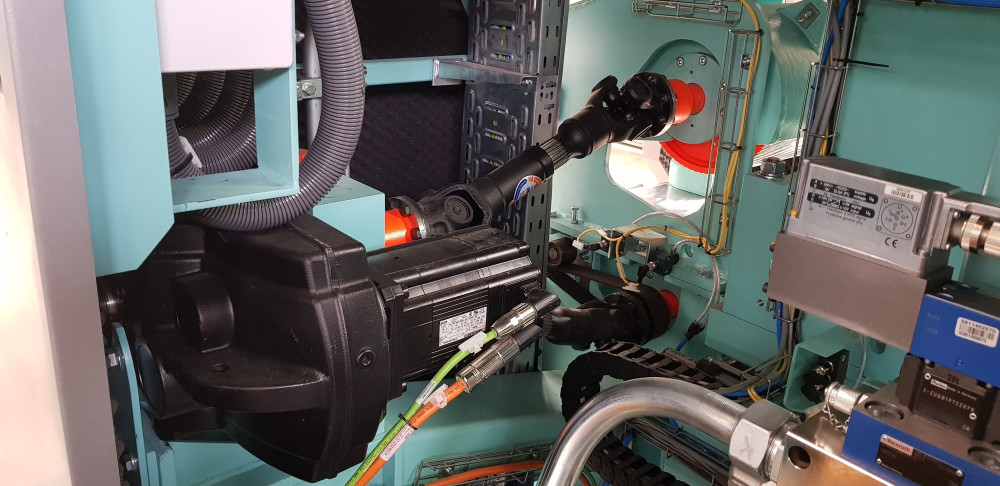

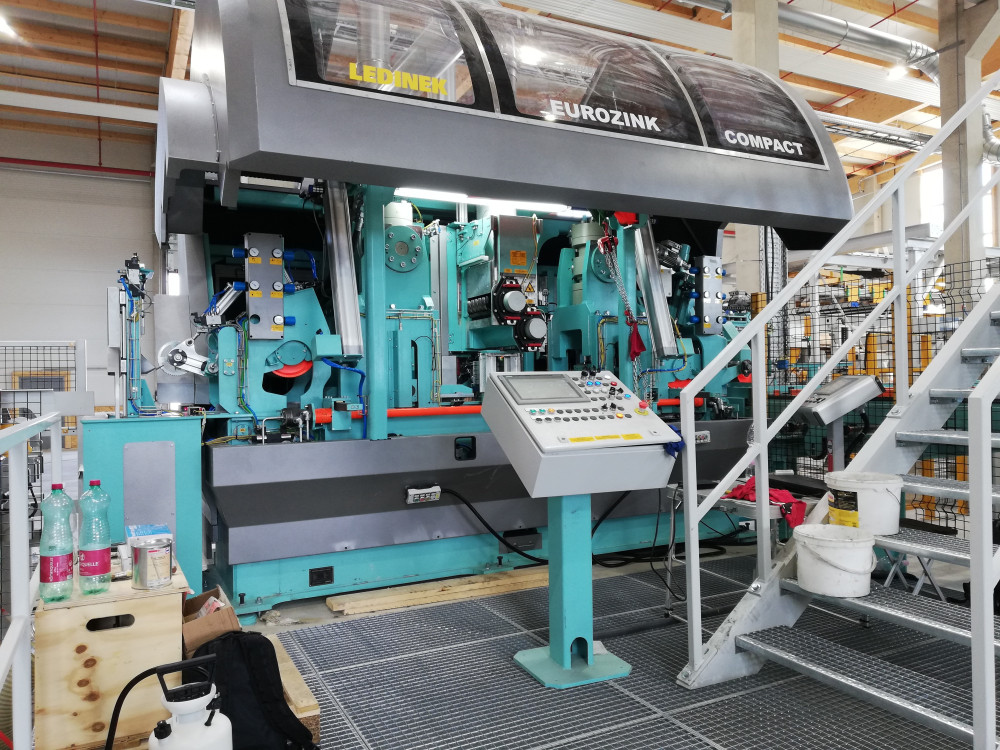

7. Two EUROZINK Compact 6-400 kN
8. Possible upgrade with third EUROZINK Compact

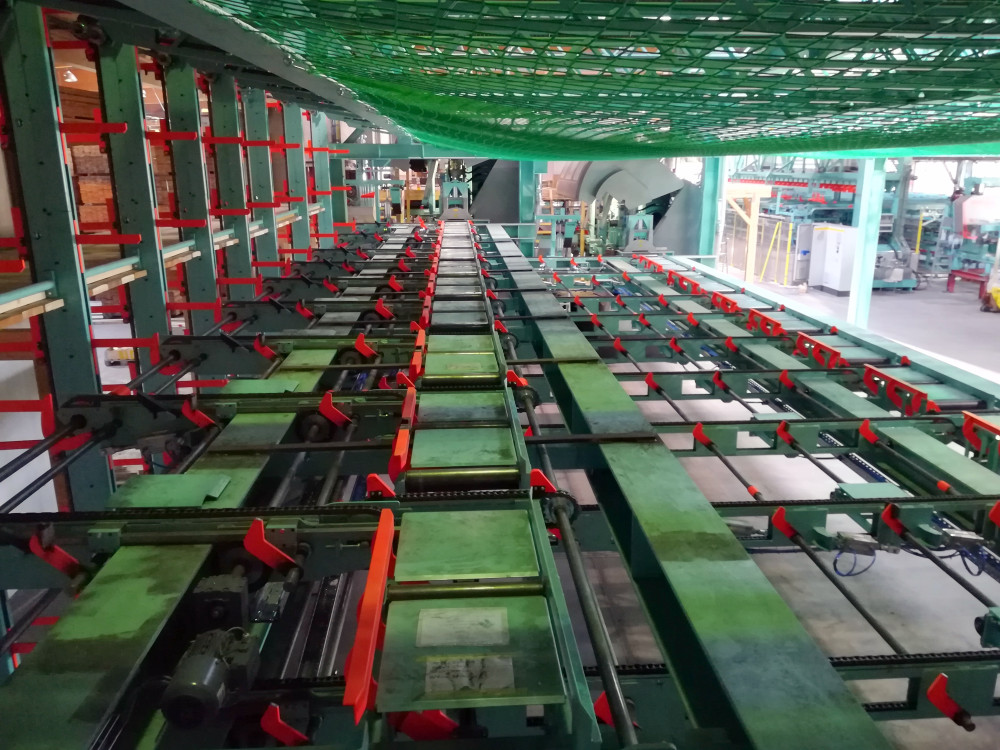

9. In-feed to Multi tray storage

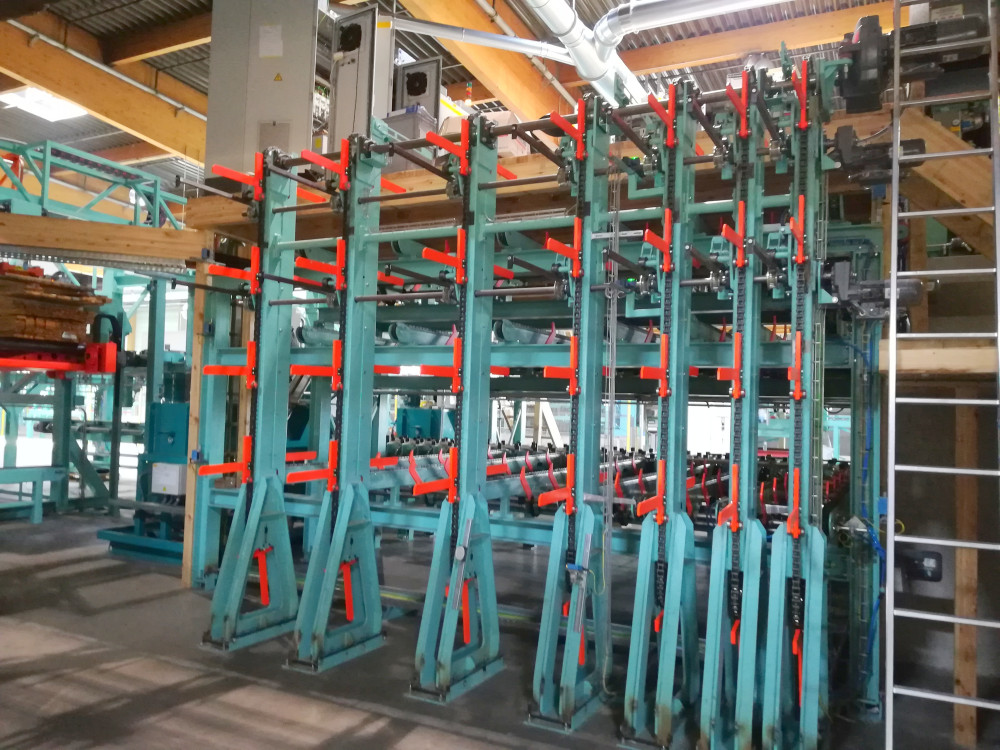

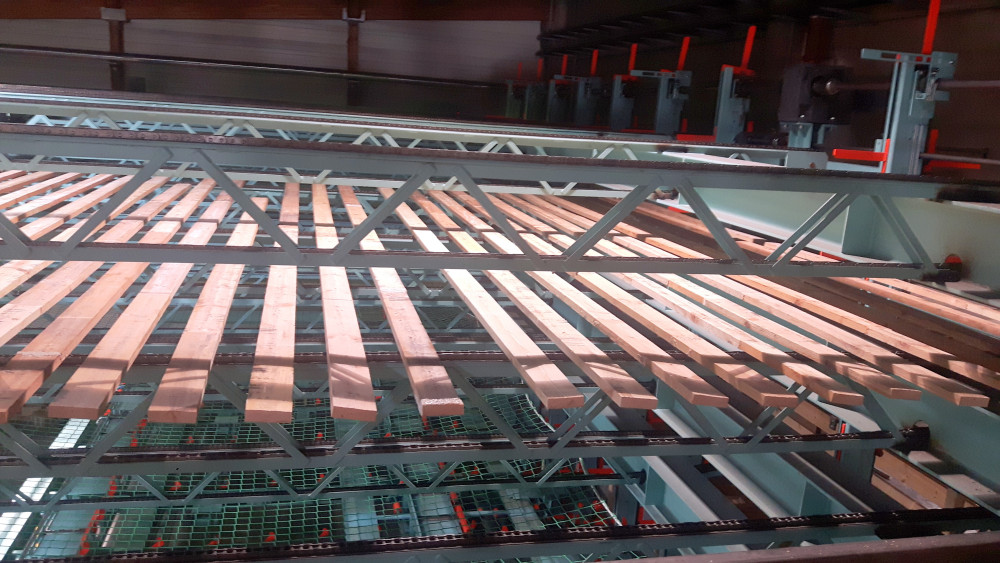

10. Multi tray curing storage (4 trays) with lug chains

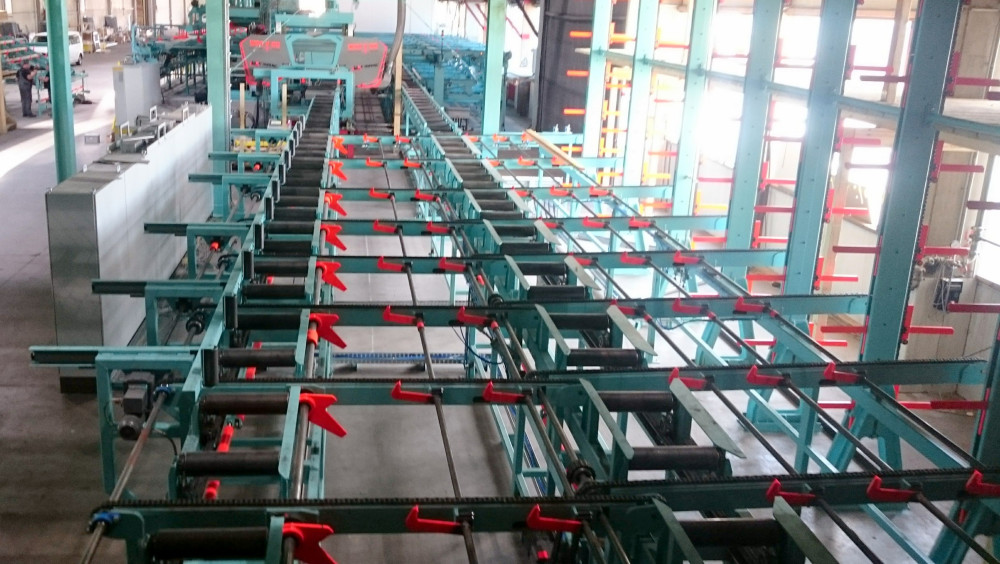

11. Conveyor with adjustable stop

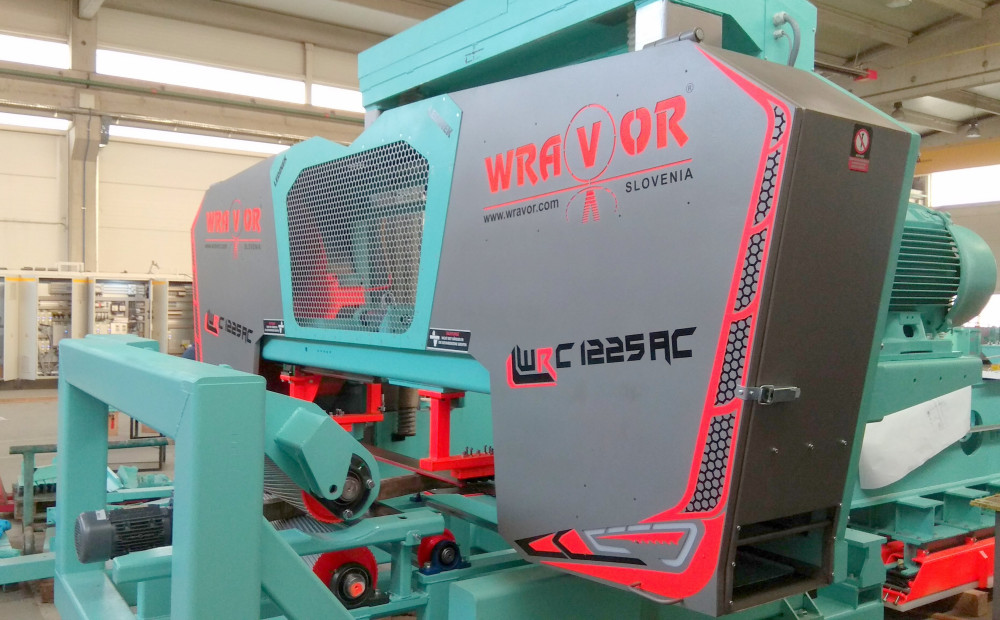

12. HTBS 700 horizontal band saw

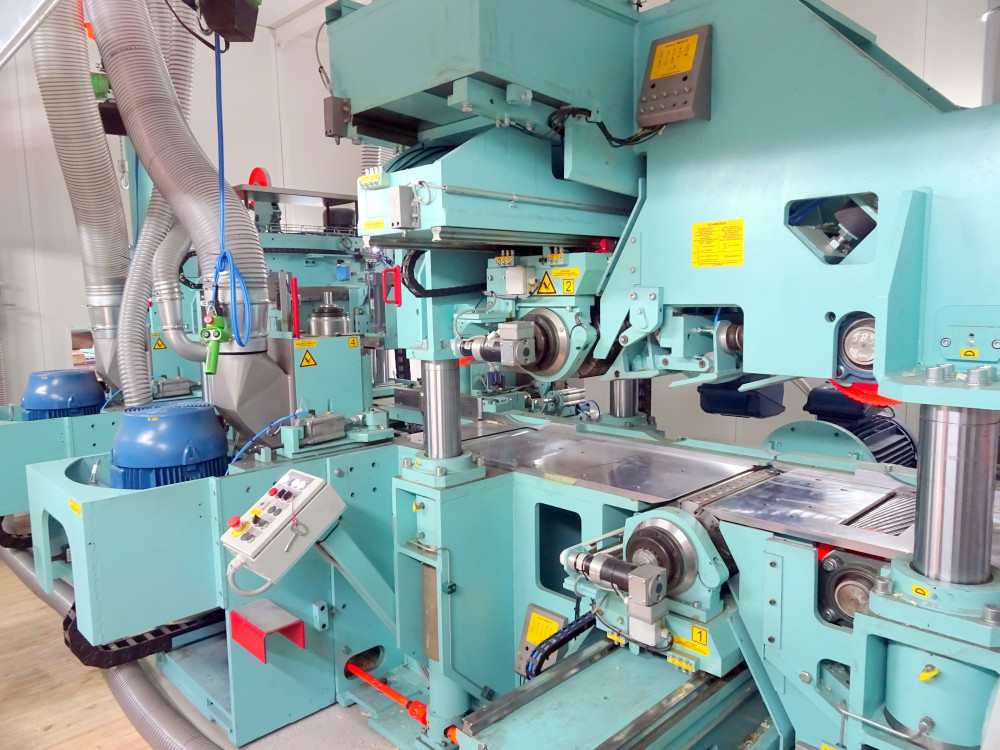

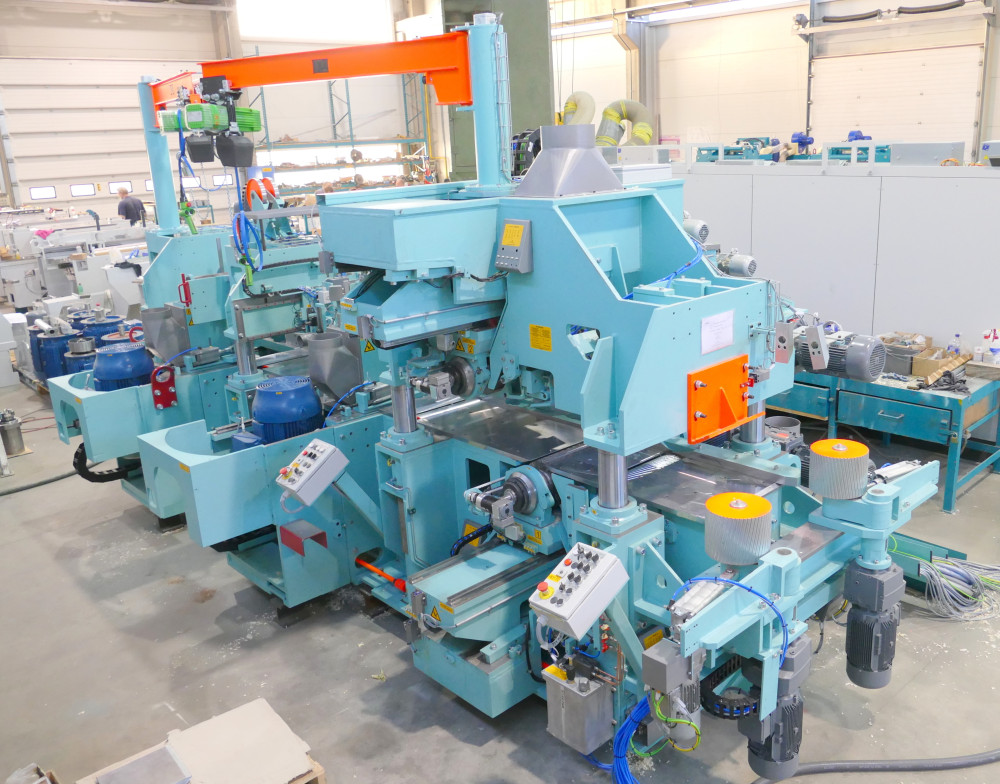

13. SUPERLES 400 6V+4F-S120 multi side planer in special version

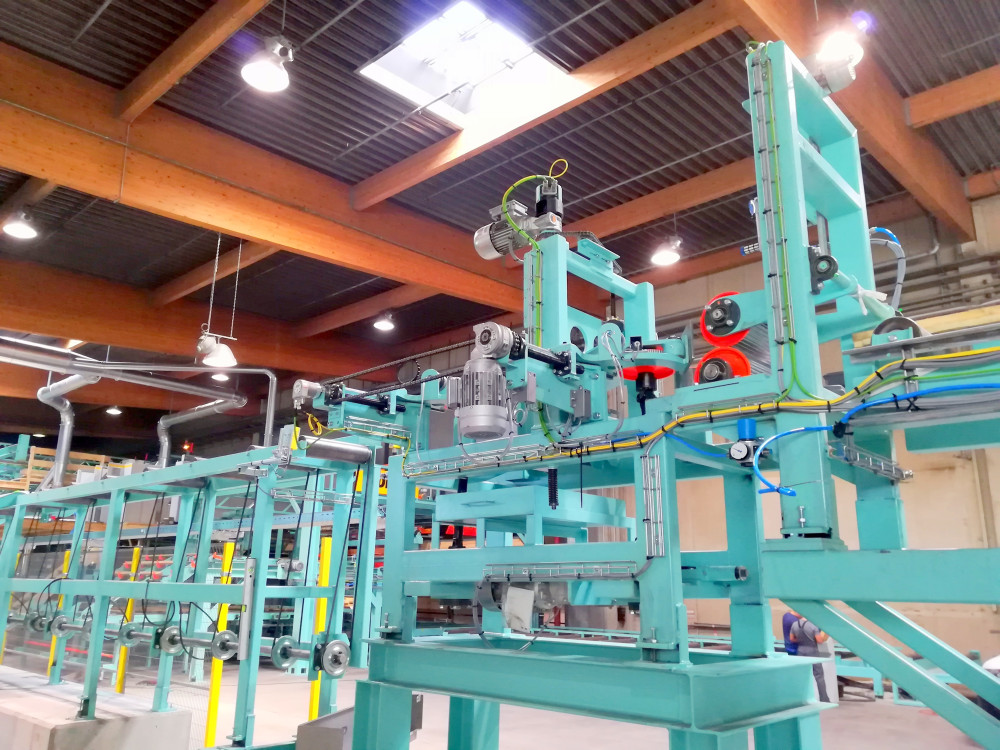

14. Glue application machine with primer application system

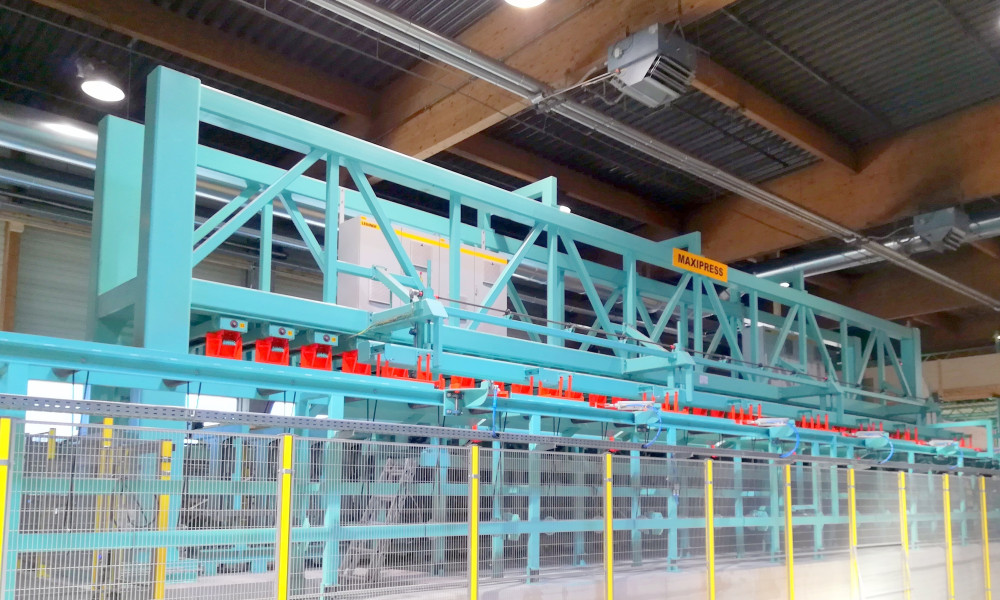

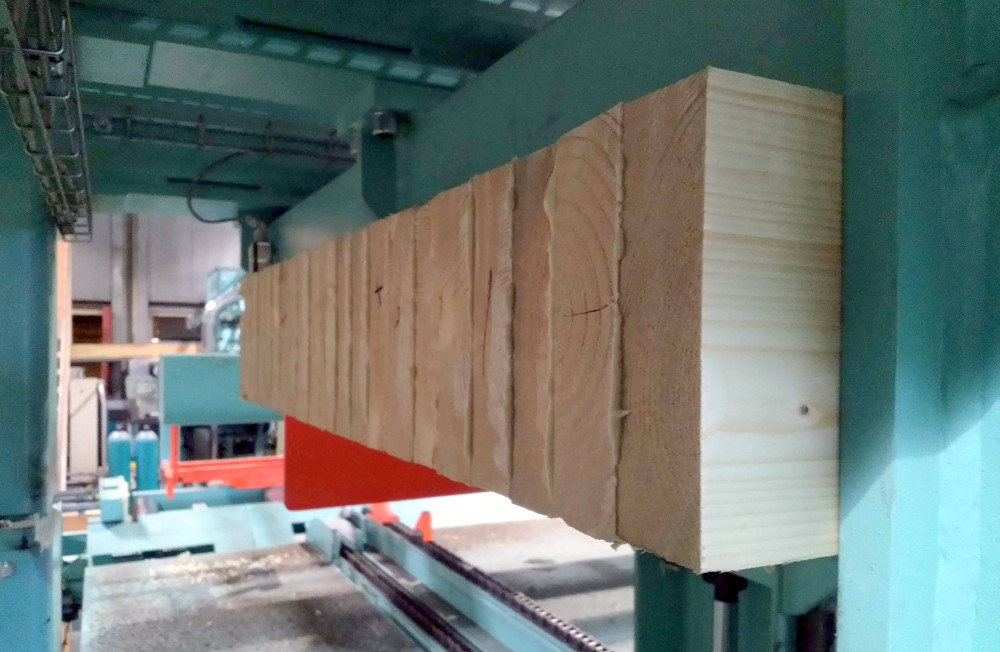

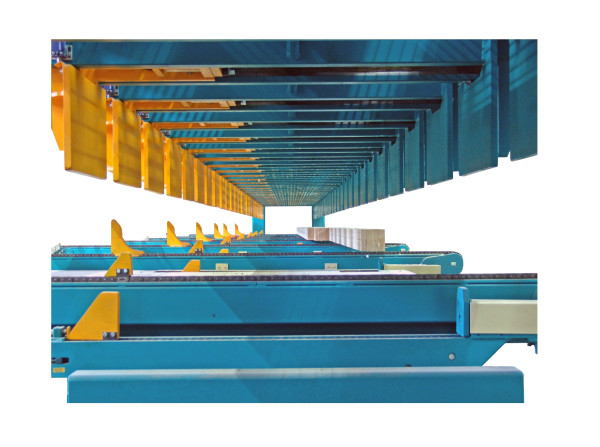

15. MAXIPRESS 1000-16 cross transfer press for production of laminated timber, duo and trio beams, …

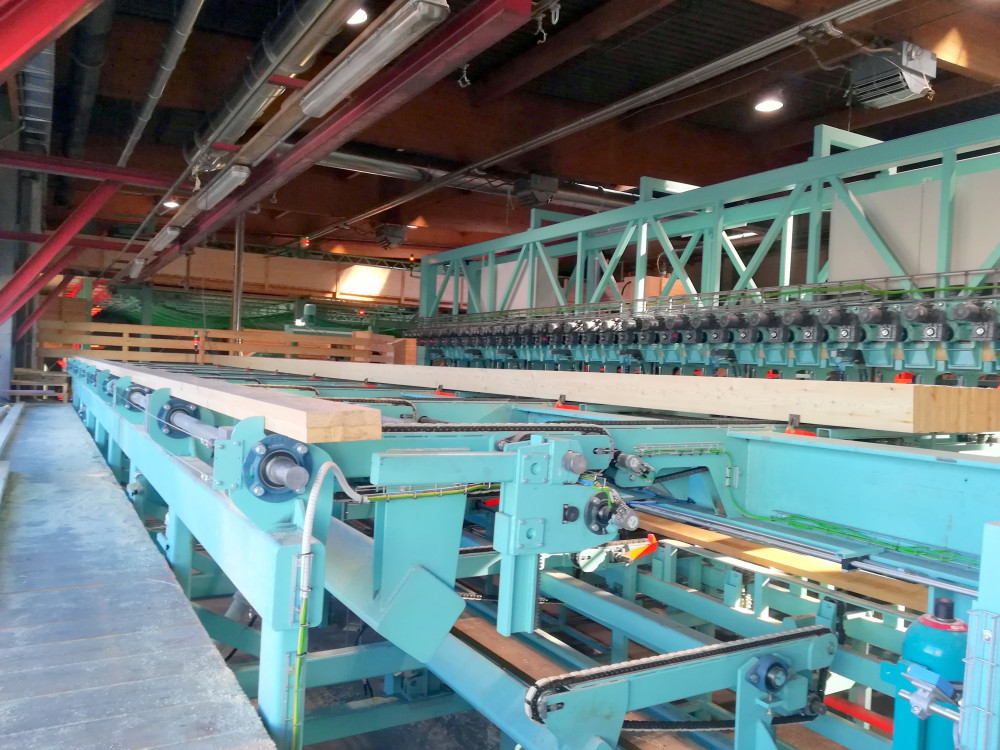

16. Reparation station with turning device

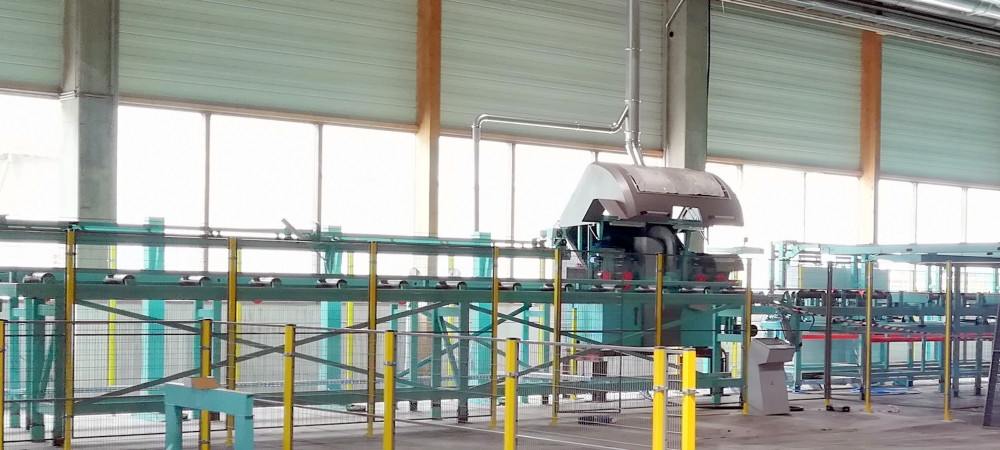

17. X-CUT S350 cross cut saw
18. Automatic stretch wrapping machine for single beams

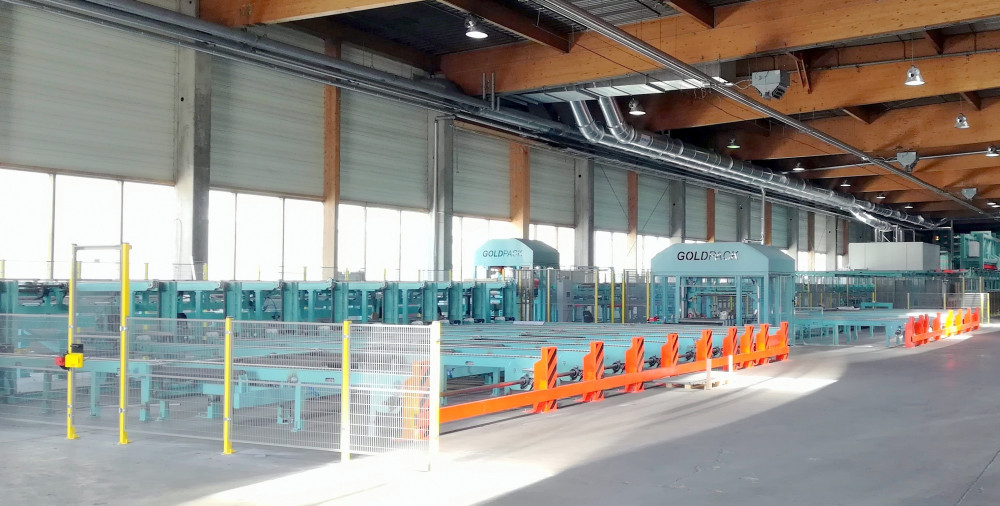

19. Stacking machine
20. Automatic stretch wrapping machine for packages
Facts
- up to 16 m x 0,45 m x 0,32 m beams size
- up to 57.600 m³/year or 120 m³/shift for solid finger jointed timber
- up to 19.200 m³/year or 40 m³/shift for glulam beams
- High flexibility of production
